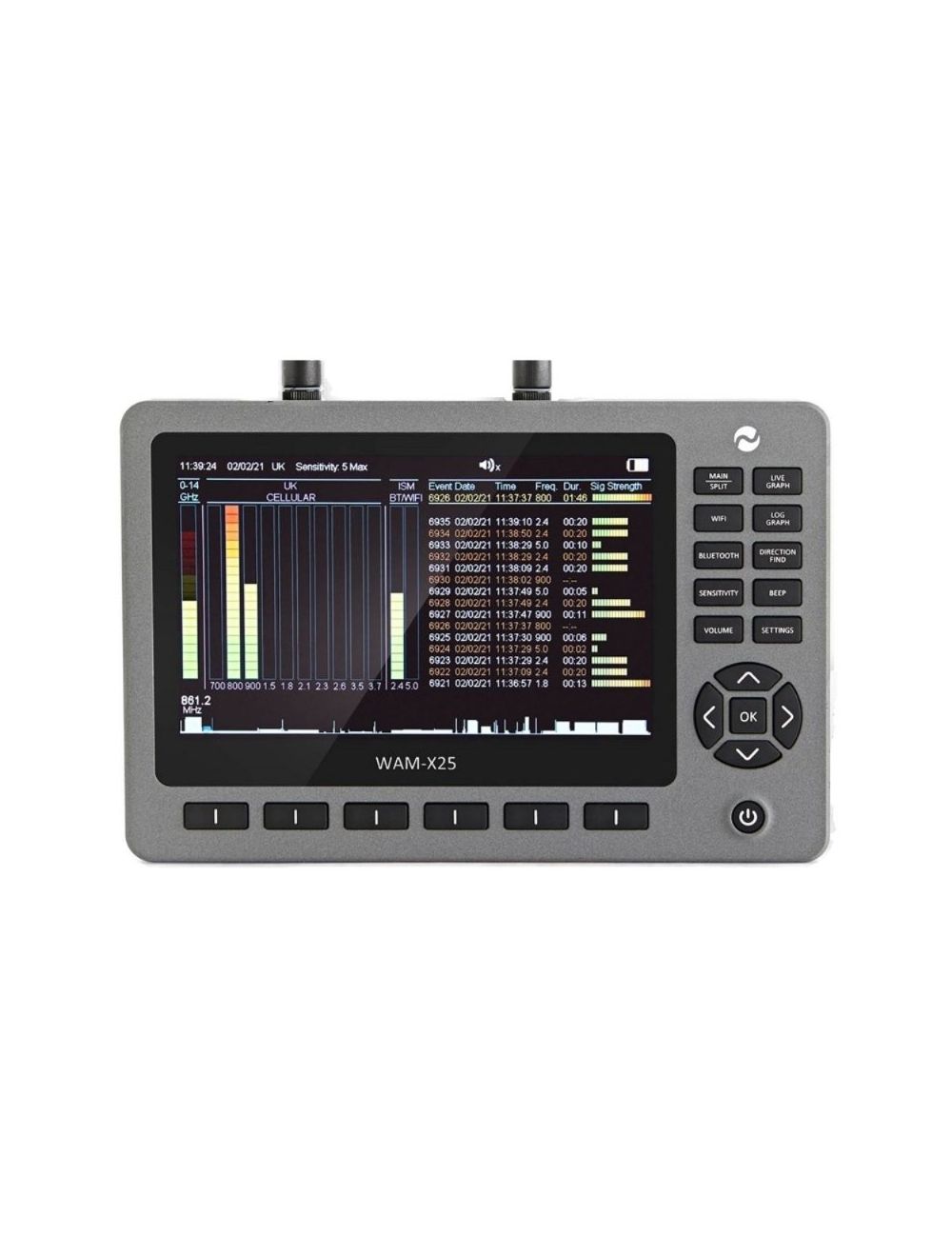

Wireless Activity Monitor 5G – Network Analyser
The Wireless Activity Monitor 5G – Network Analyser is a compact tablet-style, multi-band Radio Frequency (RF) signal detector for handheld or desktop use.
Availability:
In stock
SKU
PRONETANALYSER
Wireless Activity Monitor 5G – Network Analyser
The Wireless Activity Monitor 5G – Network Analyser, a compact tablet-style device, actively serves as a multi-band Radio Frequency (RF) signal detector suitable for handheld or desktop use. Its purpose is to detect and log transmissions from various radio frequency devices. Additionally, it possesses comprehensive coverage capabilities, actively logging all RF activity occurring in the surrounding area.
Moreover, the 0-14 GHz Wideband detector actively covers the widest range of RF activity in the target area. It simultaneously displays the frequency of the detected signal, which can reach up to 6GHz. Notably, the ‘Livescan’ software visually represents the live signal pattern, facilitating the identification of the signal type. This particular feature proves invaluable when searching for pulsing or burst devices like GPS trackers.
Furthermore, with the introduction of the new direction find mode, users can actively locate the source of a detected RF signal by rotating the Wireless Activity Monitor 5G – Network Analyser through a complete 360 degrees, utilizing the provided directional antenna. By gradually rotating the unit, users gather signal strength data, which is then graphically plotted over the entire 360-degree span. Consequently, this method offers users a precise indication of the detected signal’s source.
Notably, the network analyser includes a built-in Bluetooth analyser to list nearby active Bluetooth devices such as Smartphones, Tablets, headphones, fitness trackers, and more. The gathered information encompasses the Date & Time of Event, Bluetooth MAC Address, Manufacturer (If available), Signal Strength in dBm, and the number of Data Packets detected.
In Summary
The Wireless Activity Monitor 5G – Network Analyser, manufactured in the UK to the highest specification, is meticulously designed and enclosed in a customized machined aircraft-grade aluminum enclosure. It effectively utilizes an integral Lithium-Polymer battery pack and comes with an international charger. To ensure optimal protection, the entire system is meticulously packaged in a compact, heavy-duty military standard carry case.
Key Features: Wireless Activity Monitor 5G – Network Analyser
Detects 2G/3G/4G and the latest 5G devices – plus Wi-Fi/Bluetooth/2.4GHz & 5GHz Devices
Detects Mobile Phones, Smartphones, GPS Trackers, SMS (Texts), GSM Bugs, 3G/4G/5G Video, Bluetooth & Wi-Fi Devices, Store & Forward devices
Worldwide Cellular Coverage – Simply select the relevant region of use
Separate Wideband RF Detector 0-14 GHz with Audio Demodulation
Separate 2.4GHz & 5GHz Wi-Fi Detector
Wi-Fi Network Analyser provides data on nearby WLAN networks
Bluetooth Device Analyser provides data on nearby Bluetooth devices.
Direction Find Function for pin-pointing signal sources
Event Log records Time/Date, Band, Duration & Signal Strength of up to 10,000 Events
Log can be viewed on screen or saved to USB stick for storage/viewing on a computer
Graph Mode plots real time or historical graph of all detected cellular bands
Widescreen High Resolution 7-inch Colour TFT Display
Adjustable Omnidirectional & Directional Antennas
Machined aluminium enclosure for maximum durability
Specifications: Wireless Activity Monitor 5G – Network Analyser
Typical Performance Characteristics – at 20 degrees
Wideband Frequency Range: 10MHz – 14000MHz (14.0GHz)
Cellular Frequency Range: International bands – (300 MHz to 6 GHz) – Maximum 10 viewable bands – Sensitivity -70 dBm Max
2.4 & 5 GHz Frequency Range: 2400 to 2485 MHz & 5150 to 5850 MHz
Wi-Fi Analyser: 802.11a/b/g/n: 2.4 GHz and 5 GHz
Display: TFT Colour 7.0” High Contrast Graphic Display
Battery: Internal Lithium-Polymer rechargeable Operating duration – fully charged battery – up to 8 hours
Charging: Micro USB socket – Charge Time ~ 4 hours
Operating Temperature Range: -15 to +50 degrees C – Relative Humidity < 90%
Dimensions: 230 mm x 150 mm x 28 mm
Weight: Main Unit – 1.0 kg Carry Case Complete – 2.7 Kg
Signal Processing and Control: RISC Based Microcontroller with real time clock
Event Log: Maximum 10000 Events
USB Socket: For USB Stick download only
Supplied In Package: Multi-Band RF Signal Detector
– Main Unit
– Adjustable hinged antenna x 2
– Directional Antenna LPA-14-SMA (Blue)
– 5V Micro USB Charger-110V to 240V AC input (Auto Switching) with – International Adaptors
– Earphones
– USB Memory Stick
– High Protection Military Standard Carry Case
Write Your Own Review
Weight | 2.7 kg |
---|---|
Dimensions | 23 × 15 × 2.8 cm |
Detects |
GPS Trackers, Mobile Phones, WIFI Cameras |
Indoor/Outdoor |
Indoor/Outdoor |
Powered By |
DC 5V |
Run Time |
8 hours |
