The Handheld RF Spectrum Analyser 13.44 GHz is a fully integrated portable RF Spectrum Analyser designed for professional countermeasures. With a frequency range of 0 to 13.4 GHz and a sweep time of just half a second, it offers unprecedented performance in a handheld package
The Handheld RF Spectrum Analyser 13.44 GHz, is designed specifically for professional countermeasures. Its use (TSCM), is a fully integrated portable RF Spectrum Analyser. It boasts the highest possible technical specification to ensure maximum detection capability, accompanied by a range of invaluable features to aid countermeasures RF detection or ‘Sweeps’. Despite its impressive technical capability, the HSA-Q1 maintains its ease of operation with an intuitive and user-friendly interface.
The Handheld RF Spectrum Analyser 13.44 GHz encompasses a wide frequency range of 1 MHz to 13.44GHz, enabling it to detect a comprehensive range of RF signals. Its exceptional sweep time of just 0.5 seconds (faster in shorter spans) guarantees the detection of all types of RF signals, particularly modern pulsed burst signals that slower sweeping units could overlook.
The Waterfall (Spectrogram) function actively presents a real-time full-color graphical display of any detected signal, enabling the user to conduct further analysis. This feature proves particularly valuable when examining modern pulsed digital signals (or frequency hopping signals), such as those emitted by Cellular, Wifi, Burst, and GPS-based devices.
The Handheld RF Spectrum Analyser 13.44 GHz offers genuine portability, making it suitable for both handheld and desktop use. Equipped with a retractable stand, the unit provides flexibility in positioning. Weighing just 1.3 Kg, it is encased in a durable machined aluminium enclosure. The internal Lithium Polymer battery pack ensures 4 hours of uninterrupted usage on a single charge. Additionally, the unit can be operated continuously by connecting it to the supplied charger. For ultimate protection and portability, the entire package is supplied in a compact military standard carry case.
Detected Frequency Range: 1 MHz to 13.44 GHz
Sweep time: 500 ms (Full Range) down to 200ms (Lower Range)
Waterfall Function: Real Time Colour Spectrogram
Tune & Listen Function: Direct Tune to any frequency (1 kHz Resolution) AM/WFM/NFM Demodulation via Speaker or Earphones
Background Memory Function: Record RF environment and store for later comparison
RF Sensitivity in Sweep Mode: -80 dBm Max
RF Sensitivity in Tune & Listen Mode: -100 dBm Max
Display: 6” TFT Display Screen – Outdoor Readable
Data Logging interface: to USB Stick – Time and Date Stamped
Audio Output: Internal Speaker or Headphone Socket
RF Connector: TNC Jack
Antenna 1: Multi-Element 13.44GHz – Length 220mm x Dia. 17mm
Antenna 2: Telescopic Whip Antenna (Low Frequency use)
Power: Internal Lithium Polymer Battery – up to 4 Hours Battery Life
DC Charge: Micro USB
Charger: 110/220V Auto-switching with International Adaptors
Enclosure: Machined Aluminium Enclosure
Weight: 1.3Kg (Main unit)
Dimensions: Height 223mm x Width 158 mm x Depth 45mm
Carry Case: Compact Military Standard – L363mm x W282mm x H120mm

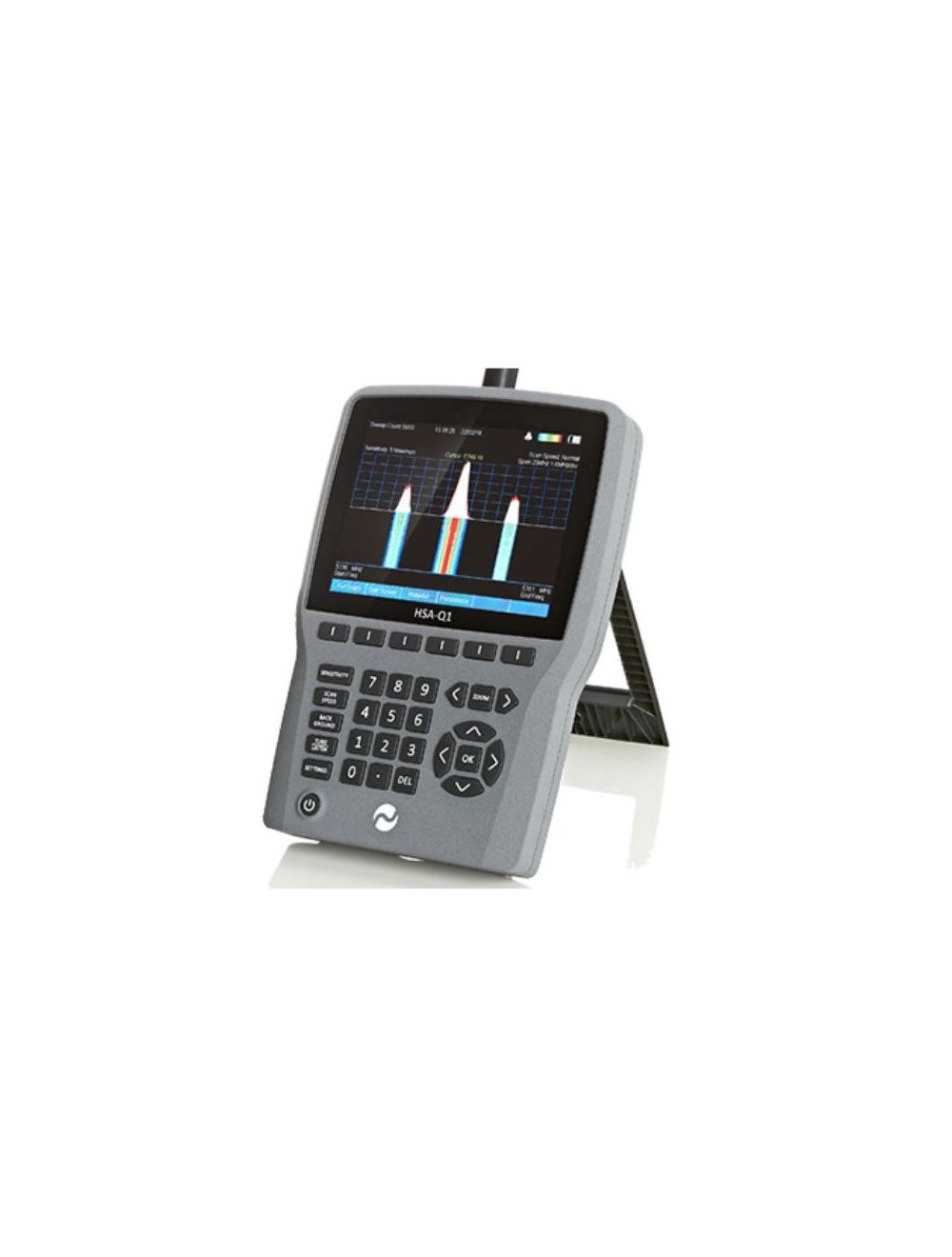

HSA-Q1 Handheld Spectrum Analyser
Multi-Element Concentric Antenna (23 cm)
Telescopic Whip Antenna
Charger with International Adaptors
Military Standard Compact Carry Case
|Dimensions||36.3 × 15.8 × 12 cm|
USB Phone Charger, USB Power Bank, USB PC
