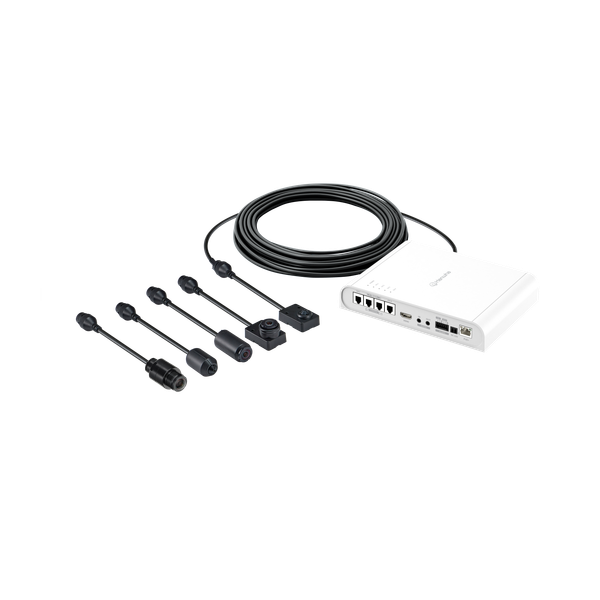

Wisenet Covert Camera NVR Camera Kit

Special Order – Please enquire

Wisenet Covert Camera NVR Camera Kit

4MP Premium Covert Camera with Remote View
Looking for a premium covert camera with recording up to 25 fps @ 4mp, then this is for you.

Great for all covert ops, or vehicle recording, you can even use remotely with a 12vc battery.

Learn More

Wishlist Compare
Categories: , ,

Description



4 Camera NVR

  • On Cloud compatible
  • 2 Megapixel (1920 x 1080) resolution
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • 60fps@2MP (H.265 / H.264)
  • extreme WDR (120dB), Defog, DIS
  • Advanced video analytics and sound classification and business analytics
  • micro SDXC Memory slot (Maximum 1 x 1TB), Hallway View, Wise Stream II
  • LDC, PoE / 12V DC, Bi-directional audio support
  • TPM 2.0 (FIPS 140-2)

Specifications

None
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD None
Pixel Size None
Min. Illumination None
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
Video Transmission Distance None
Lens
Focal Length (Zoom Ratio) None
Max. Aperture Ratio None
Angular Field of View None
Min. Object Distance None
Focus Control None
Lens Type None
Mount Type None
Optional Lens SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA
Operational
Camera Title Displayed up to 85 characters
Direction Indicator None
Day & Night Auto(Electrical)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR(120dB)
Digital Noise Reduction SSNRⅤ, WiseNR
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones – Color: Gray, Green, Red, Blue, Black, White – Mosaic
Gain Control Off / Max Gain / Manual
White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
LDC Support(Not support for fisheye lens)
Electronic Shutter Speed Minimum / Maximum / Prefer shutter / Anti flicker(2~1/12,000sec)
Digital PTZ None
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Analytic events – Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Face detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Virtual line(Crossing/Direction)
Business Intelligence People counting, Queue management, Heatmap
Serial Interface None
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule
Alarm Events When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback
Audio Streaming None
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Video Quality Adjustment H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast)
SIP support (VoIP, Peer-to-peer, SIP/PBX integration) None
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery TPM 2.0 with FIPS 140-2 level2
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Web Viewer None
Edge Storage Micro SD/SDHC/SDXC 1slot Max. 1TB
Memory 2GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C~+55°C(+14°F~+131°F) / 0~90% RH(non-condensing)
Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / 0~90% RH
Certification None
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 10.5W, typical 6.9W 12VDC: Max 8.6W, typical 5.5W Power redundancy failover
Mechanical
Color / Material Black / Plastic, Metal
RAL Code RAL9005
Product Dimensions / Weight 131.1(W)x33.5(H)x86(D)mm(5.16×1.32×3.39″) / 420g(0.93lb)
Compatible Conduit hole / Gangbox None
Hanging Mount (Dome) None
Skin Cover None
Skin Cover (Dome) None
Weather Cap (Dome) None
Power Module None
Backbox None
Certifications & Standards
Network None
EMC FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environment IEC/EN 63000
Video None
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) None
Observe (63PPM/ 19PPF) None
Recognize (125PPM/ 38PPF) None
Identify (250PPM/ 76PPF) None
