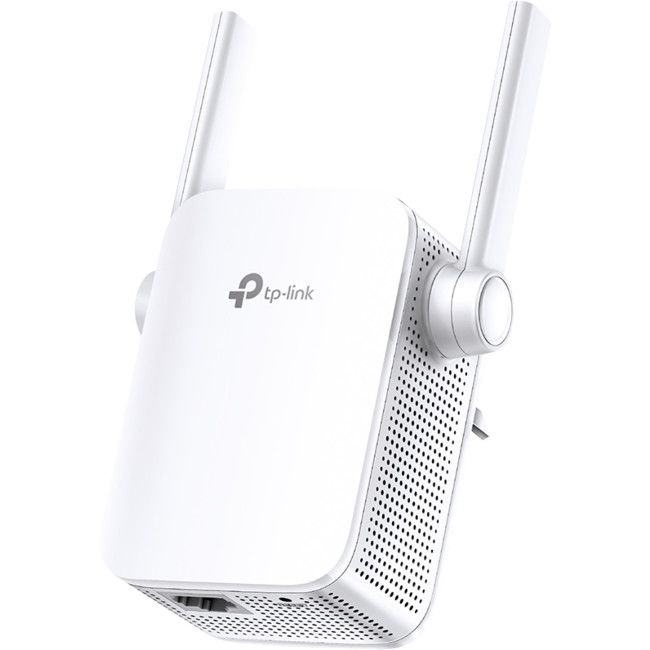

WIFI RANGE EXTENDER

Description

WI-FI RANGE EXTENDEREASILY EXPAND YOUR WI-FI COVERAGE
Easily Expand Your Wi-Fi Coverage Tired of Wi-Fi dead zones in your home? The  Range Extender connects to your Wi-Fi router wirelessly, strengthening andexpanding its signal into areas it can’t reach on its own, while reducing signal interference to ensure reliable Wi-Ficoverage throughout your home or office.
High-Speed Dual Band Wi-Fi for Better Connections The RE205 lets you keep more devices connected at the same time with its 2.4GHz 300Mbps and 5GHz 433Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.
Perfect Location at a Glimpse An Intelligent Signal light helps you quickly find the best location to install the extender
Built-in Access Point Mode  is morethan a wireless range extender. Simply plug the Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual band wireless access point.
Easy Management and Remote Control This works with all Wi-Fi routers. You can use TP-Link’s free Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich phone app allows you to enjoy not only hassle-free installation, but also access to advanced network management, all at yourfingertips.
Specifications:

HARDWARE FEATURES

Plug Type
AU

Standards and Protocols
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b

Interface
1 x 10/100M Ethernet Port (RJ45)

Button
WPS Button, Reset Button

Power Consumption
7.3W(max power consumption)

Dimensions ( W x D x H )
3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)

Antenna
2 x external

WIRELESS FEATURES

Frequency
2.4GHz & 5GHz(11ac)

Signal Rate
5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs

Reception Sensitivity
5GHz:
11a 6Mbps: -94dBm@10% PER
11a 54Mbps: -77dBm@10% PER
11ac HT20: -69dBm@10% PER
11ac HT40: -66dBm@10% PER
11ac HT80: -63dBm@10% PER

2.4GHz
11g 54Mbps: -79dBm@10% PER
11n HT20: -77dBm@10% PER
11n HT40: -74dBm@10% PER

Wireless Modes
Range Extender/Access Point
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band

Wireless Functions
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function

Wireless Security
64/128-bit WEP
WPA-PSK / WPA2-PSK

Transmission Power
<19.5dBm(2.4GHz)
<19.5dBm(5GHz)

OTHERS

Certification
CE, FCC, RoHS

Package Contents
AC750 Wi-Fi Range Extender RE205
Quick Installation Guide

Box Dimensions (W X D X H)
6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)

System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
