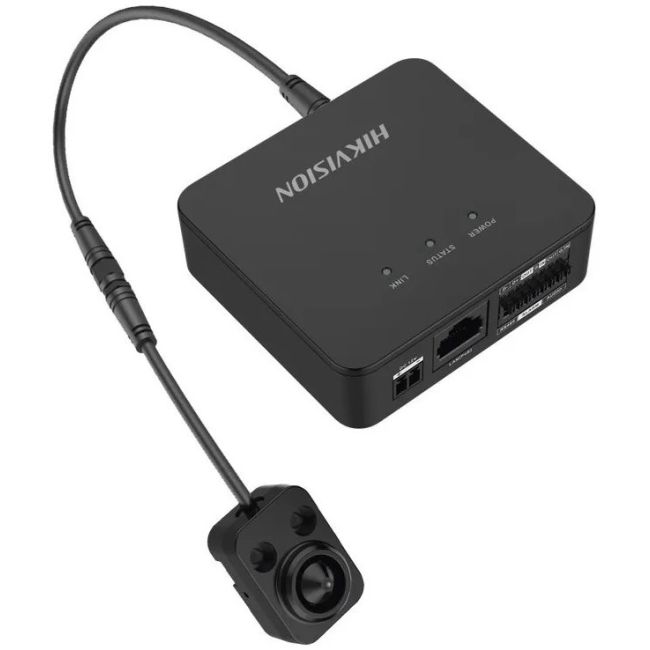

Hikvision Covert Block-Shaped Pinhole 2MP 3.7mm

Description

This Hikvision 3.7mm – 8 meter cable indoor micro camera is ideal for making discrete recordings in perfect image quality.
It contains smart functions such as:
-Line crossing detection
-Intrusion detection
-Unattended baggage detection
-Object removal detection
-Face detection
-Comes with 8 meters of cable

camera
Number of image sensors:
1

Optical/Thermal:
Optical

Image sensor:
1/2.8

Resolution:
1920×1080

Number of pixels:
2MP

Minimum lighting strength (in color):
0.002 Lux

Relief:
No

Shutter speed:
1/3s ~ 1/100,000s

Noise reduction:
3DNR

Lens
Lens type:
Fixed lens

Iris:
Fixed Iris

Focal Length:
3.7mm

Maximum opening:
F2.5

Horizontal opening angle:
75.5°

Vertical opening angle:
41.6°

Video
Stream option:
3 streams

Video compression:
H.264, H.264+, H.265, H.265+, MJPEG

Images per second (Main stream):
25fps @1920 x 1080

2nd stream:
25fps @640×480

3rd stream:
1fps @1920 x 1080

Day Night:
Auto (filter)

BLC mode:
BLC, HLC, WDR(120dB)

Motion detection:
On off

Smart Features:
Intrusion Detection

Line Crossing

Object Removal Detection

Region Entrance Detection

Region Exit Detection

Scene Change Detection

Unattended Baggage Detection

Defog:
Yes

Privacy masking:
Yes

Audio
Built-in microphone:
No

Audio input:
Yes

Audio Output:
Yes

Audio Compression:
AAC, G.711, G.722.1, G.726, MP2L2, PCM

Speaker:
No

Network
Ethernet:
1 RJ45 10M/100M Ethernet port

SD card storage option:
Yes

Maximum Storage Capacity SD Card:
256GB

Interface
RS-485:
Yes

Alarm:
Yes

Number of channels in:
1x max: 12 VAC, 30mA

Number of channels out:
1x max: 12 VAC, 30mA

Electric
including power supply:
No

Power supply:
12V DC, PoE (Type IEEE 802.3af)

Max Consumption:
3.65W

Environment
Working temperature:
-30°C ~ +60°C

Construction
Material
Plastic/Metal

Diameter
ØLens: 26mm

Height
Lens:32.7mm
Camera:77.5mm

Width
Camera:71mm

Thickness
Camera:26mm

Weight:
0.87 Kg

DORI
The DORI makes it easy to see whether this camera is suitable for the application that will be used. The DORI is based on lab tests and approved with EN 62676-4, this inspection applies to: Detecting, Observing, Recognizing and Identifying.

To detect
To observe
(R) Recognize
Identify

Depth
59.3mm
23.5mm
11.9mm
5.9mm
