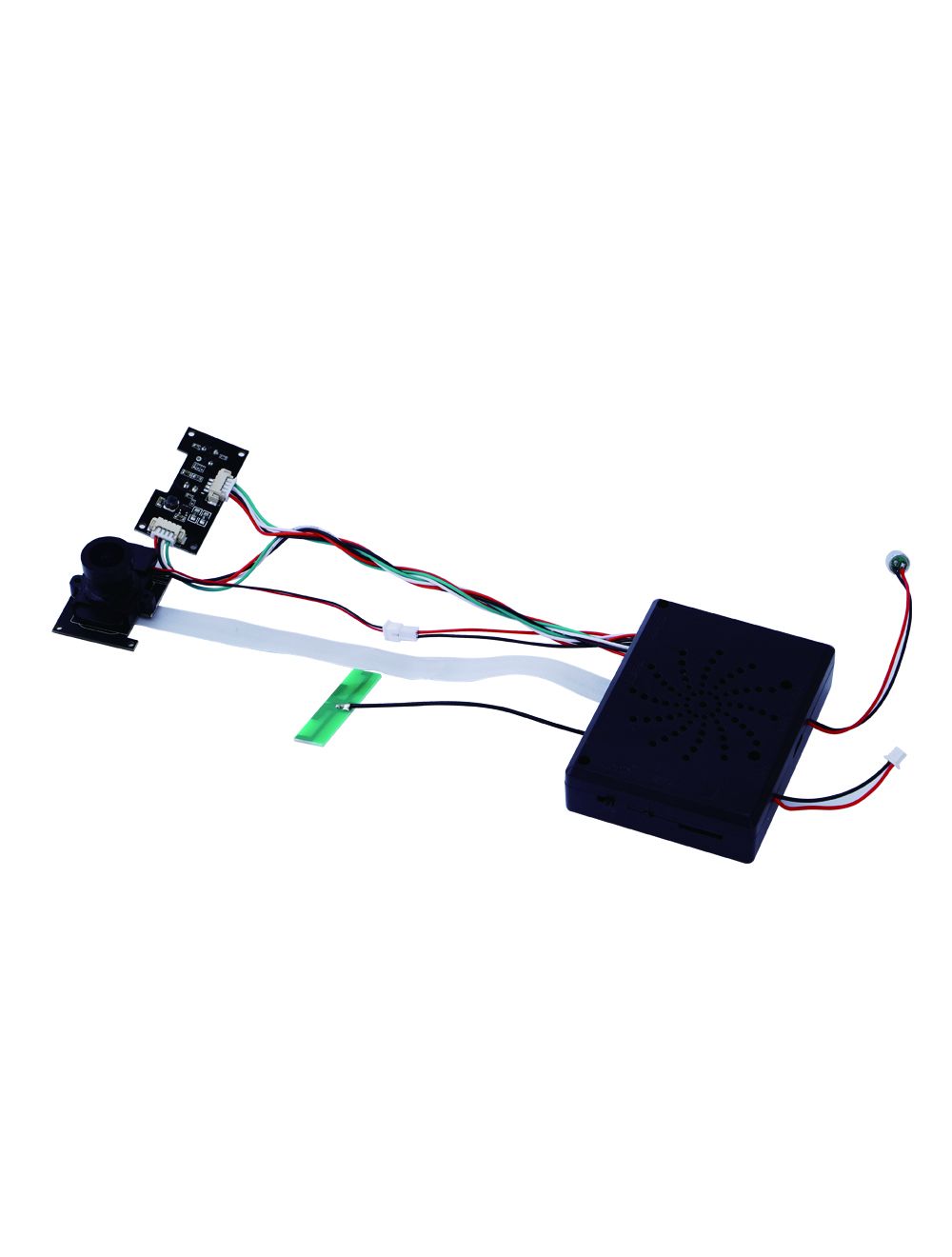

DIY Module Camera Overview

This DIY a cost-effective and unique style wifi ip DIY module camera .The Wi-Fi camera module is mini in size,portable and easy to hide anywhere or in and object. it has real-time video streaming and recording on your smartphone ,with high resolution 2.0 mega pixel lens, you get the real and v video remotely when PIR human motion is detected, and notified with images . Meanwhile, a video clip will be recorded to SD card and can be read on App. As well over 12 month for long time standby battery

Features:

Night vision Wi-Fi DIY camera module
2.0 Mega HD 1080P High definition
Wi-Fi P2P Live streaming Video
App remotely taking video and photo
PIR Human and Motion detection video recording and alarm
5M invisible far night vision
2500mAh battery life time around half an year
5000mAh/7500mAh battery is selectable
Big Lens/Mini Lens is selectable

Specifications:

Around 5 meters invisible night vision
WiFi Worldwide Live Streaming video
Motion detection & Push alarm msgs
Two way speaking
Loop recording
Microphone Support
2.0 mega pixel CMOS lens
Video resolution: 1920*1080
Photo resolution: 1920*1080
Frame: 15FPS
H.264 compressed format
Lens angle: 145 degree
Support Micro SD card: Max 64GB
PIR alarm pictures in server: 15days
Standby power consumption: 500μA
Power consumption: 400mAh
Power consumption with night vision: 640mAh
Normal working time
Full charge:  90 days
Standby time: Ove2 12 months standbye
Charging time:6 hours
Mobile phone operation system: Android/iOS

Packing list:

1 x DIY Module Camera
1 x USB cable
1 x User manual
1 x Micro SD card reader
1 x 7500mAh battery

Product size:6.3*4.8*1.6(CM)
Color box Size:10.5*7.5*8.5(CM)
Weight of a Unit :
60pcs each Carton
Carton size: 42*39*34(CM)
